2 String Solar PV Combiner Box 2 in x20A 1 Out x 32A IP65 DC1000V 32A Disconnect Switch with Surge Protector and 20A PV Fuse, Circuit Breaker Outdoor IP65 Waterproof for Solar Panels System
Product details
| Management number | 221118672 | Release Date | 2026/05/03 | List Price | US$28.00 | Model Number | 221118672 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [2 Input 1 Output PV Combiner Box]: CNLonQcom's solar combiner box is designed to optimize the connection between the PV array and the inverter. The device supports up to 30kW of power in a 1000V system. The device has a maximum input current of 20A per string and a maximum output current of 32A per string and provides overvoltage, overload and quick disconnect features to ensure the safety of the PV system
- [Isolator+SPD+FUSE]: CNLonQcom's PV Combiner Box are equipped with 32A DC1000V disconnect switch, DC1000V T2 surge protector and 20A DC1000V fuse. Capable of switching circuits and providing short circuit, overvoltage, leakage and lightning protection
- [Durable IP65 Waterproof Box]: The junction box is made of high quality PC+ABS material and is IP65 waterproof, flame retardant and UV resistant. It is suitable for both indoor and outdoor use and is resistant to sand, dust and rain

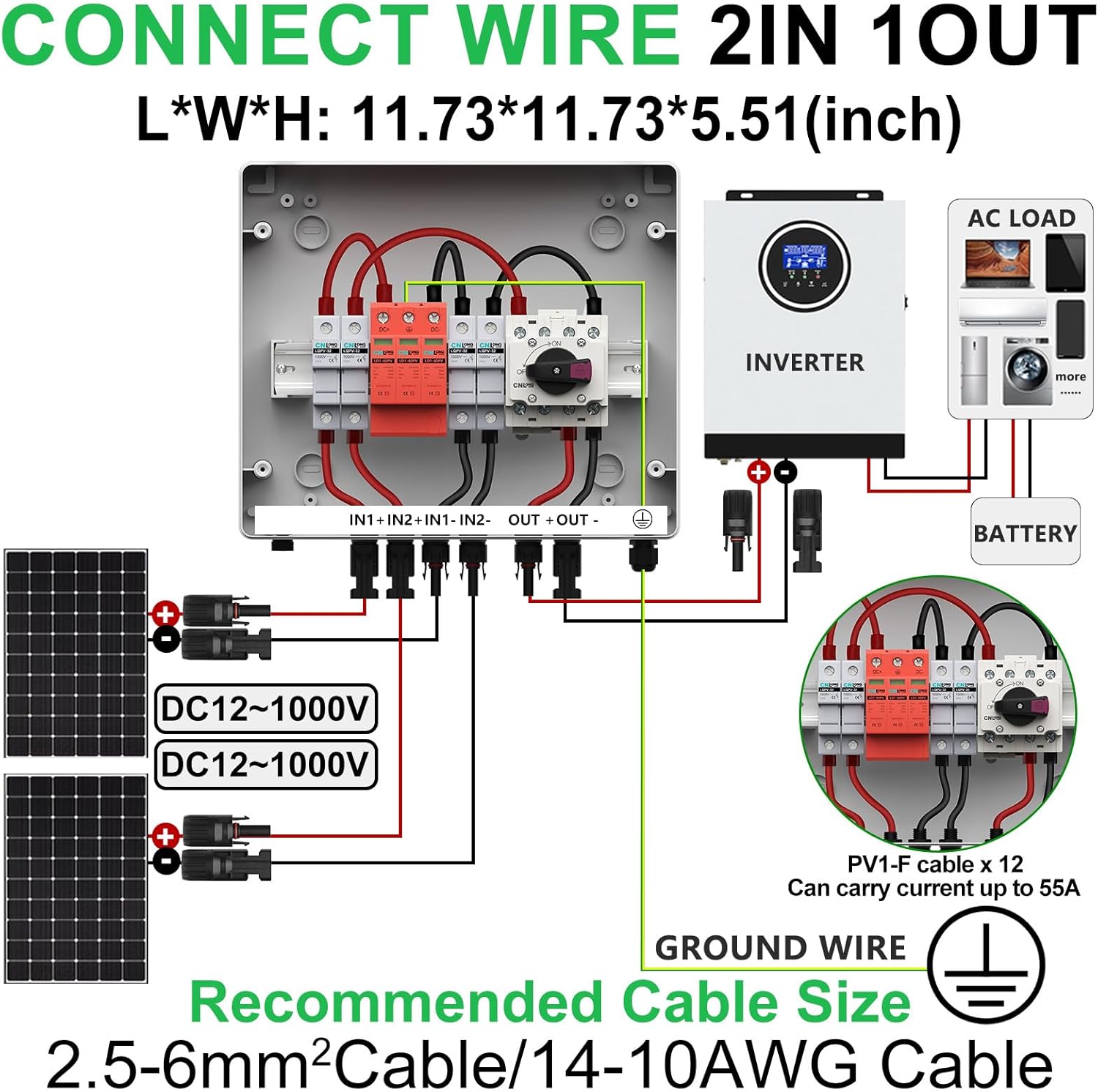

- [Easy Wiring and Wall Mount]: CNLonQcom's Solar Combiner Box come pre-wired with 10AWG PV1-F cable inputs and jumpers to simplify installation, just connect the outputs and ground wire. A free ground wire is included in the package for use if needed
- [Application]: Designed for grid-tied or off-grid solar systems, including solar panels, RVs, boats, rooftops, and other wind or solar systems. Supports up to 720W in a 12V system, up to 1440W in a 24V system, and up to 2880W in a 48V system, making it a powerful and reliable solution for small to medium-sized solar projects
| Model | LQX-HA |
|---|---|
| Brand Name | CNLonQcom |
| Unit Count | 1.0 Count |
| Part Number | LQX-HA |
| Manufacturer | CNLonQcom |
| Material Type | Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC) |
| Number Of Circuits | 3 |
